Design
Whether your next project is a small kitchen or a large kitchen, a master bathroom, or beautiful custom cabinetry for any room in your home, our craftsmanship and meticulous attention to detail will be obvious.
The following guide may be helpful in drawing and measuring your kitchen or other room in your home. Once you have the correct measurements, call us at (718)-646-3700, or fax the measurements directly to us at (718)-891-3258, and we can work together to make your dream project become reality.

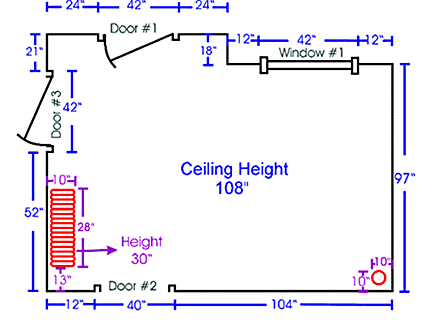

Example Room Drawing
Step 1
Draw a rough outline of your kitchen. Be sure to mark the location of doorways and windows.
Step 2
Draw in any obstructions such as radiators, pipes, sink plumbing, etc. that you either can not, or do not, want moved.
Step 3
Beginning at the top left corner of your drawing measure to the first window, door, or wall. Continue clockwise around the room until each wall, window and door has been measured. Note: When measuring doors and windows the trim is considered part of the door or window. Measure from the outside of the trim on one side to the outside of the trim on the other side.
Step 4
Measure the ceiling height and write it in the center of your drawing. Sometimes, especially with older homes, it is a good idea to take measurements in a few different areas of the kitchen. Ceiling heights, even in the same room, can sometimes vary by as much as a few inches.
Step 5
Measure from the floor to the bottom of each window and also measure the overall window height.
Step 6
Check that your measurements along each wall add up correctly.
If you have any questions about this process, feel free to call us at (718)-646-3700.
|
